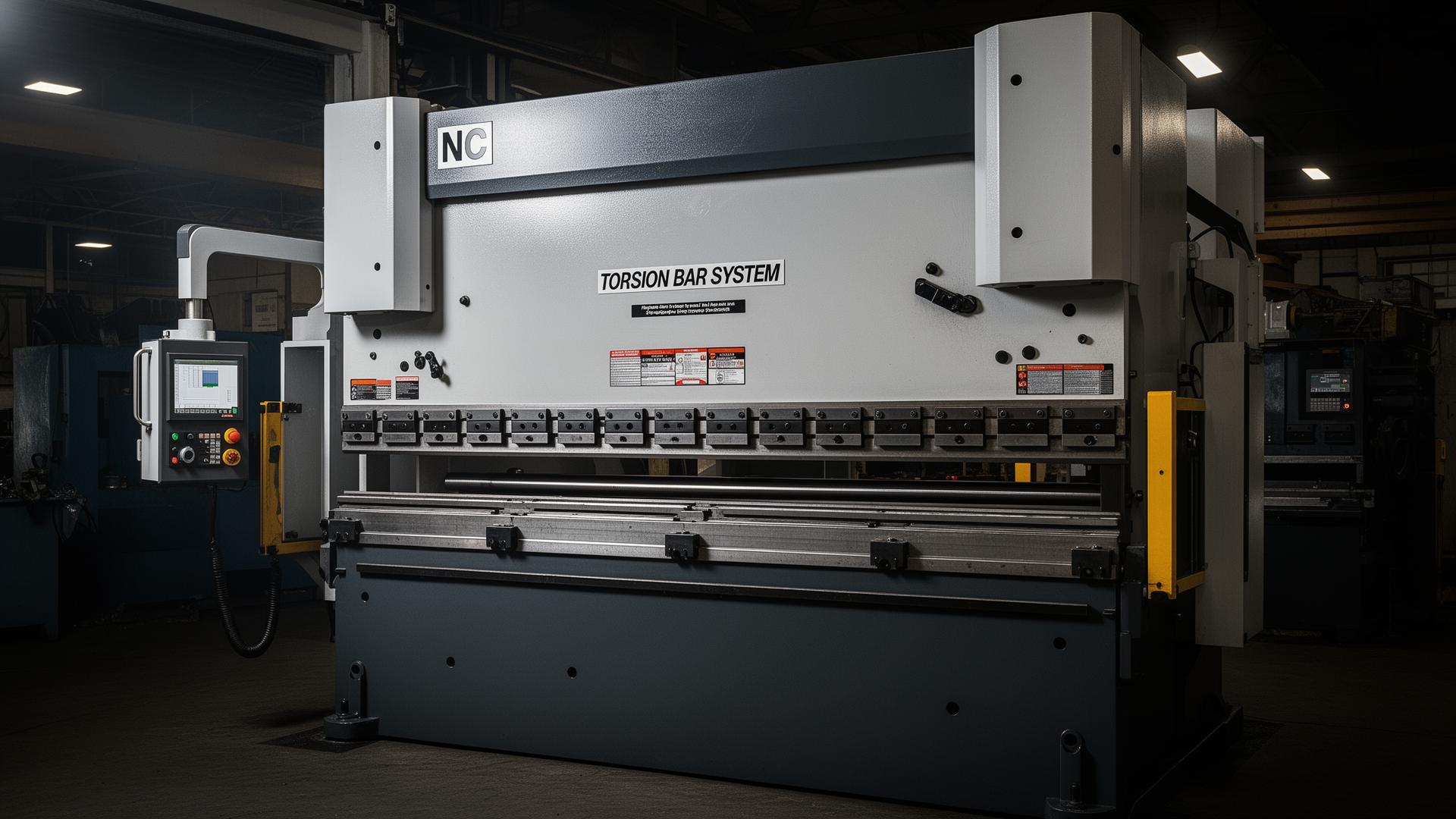

Torsion Bar NC Press Brake

NC sheet bending machine with Torsion Bar system
3 axis + Crowning system

Practical and economical solution for factories-capacity from 100 to 600 tons with TP10S control and Torsion Bar system for perfect synchronization.

Why is this model

Economical solution with reliable industrial performance

Lower investment cost compared to full CNC systems

Easy operation and programming

High mechanical stability

Suitable for large lengths

Good precision for industrial production

Simple maintenance and low operating cost

Mechanism of action

Technical mechanism of action

It relies on a Torsion Bar system that connects the two sides mechanically to ensure the synchronization of the Ram movement during the bending process.

The TP10S system controls the:

Depth adjustment

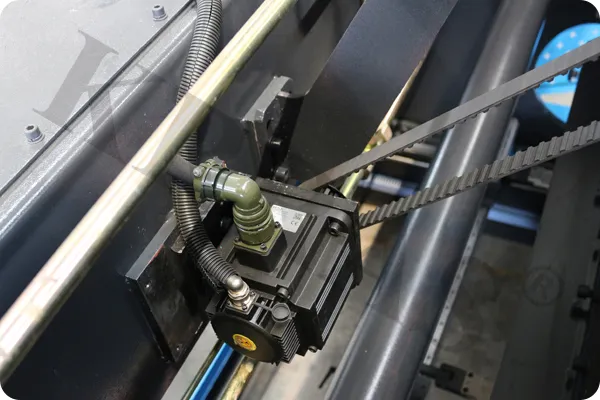

Rear axle control (Back Gauge)

Adjust the bending angle

Storage of simple programs for repeated operation

The Crowning system (manual or automatic depending on the model)helps to compensate for the curvature of the table to ensure an even pressure distribution along the sheet.

Materials

Operable materials

Carbon steel sheet

Stainless steel

Aluminum

Industrial metal sheets

Uses and applications

Areas of use

Metal forming workshops

Metal door factories

Manufacture of metal cabinets

Medium engineering industries

Medium-sized production lines

Specifications

Technical specifications

Shear lengths	160-600 CM
Maximum thickness	Up to 25 mm (depending on the model)
Control system	NC Controller
Operating system	Hydraulic Drive
Repeat accuracy	±0.1 mm
Back metering system	Motorized Back Gauge
Voltage	380V-triple won
