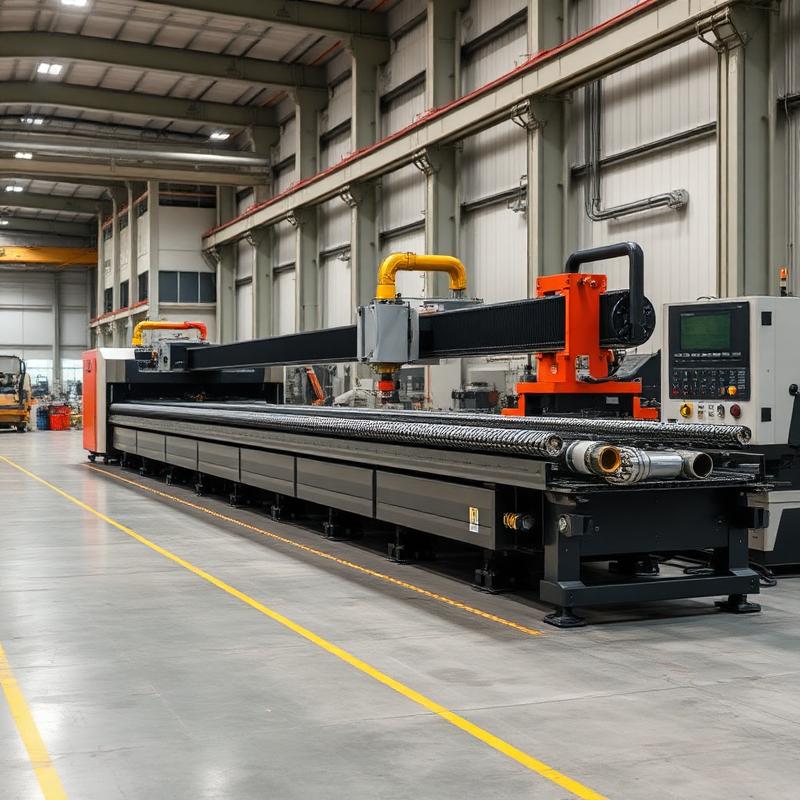

Pipe Fiber Laser Cutting Machine

Fiber laser CNC machine
For cutting pipesAnd metal sectors

A complete solution for cutting round, square, rectangular pipes and H-Beam segments with high precision and high production speed.

Why is this model

Ideal for factories based on metal structures

High accuracy of pipe openings

Reducing waste in raw materials

Great production speed

Suitable for large projects

Ability to cut heavy sectors

Prolonged stable operation

Mechanism of action

Technical mechanism of action

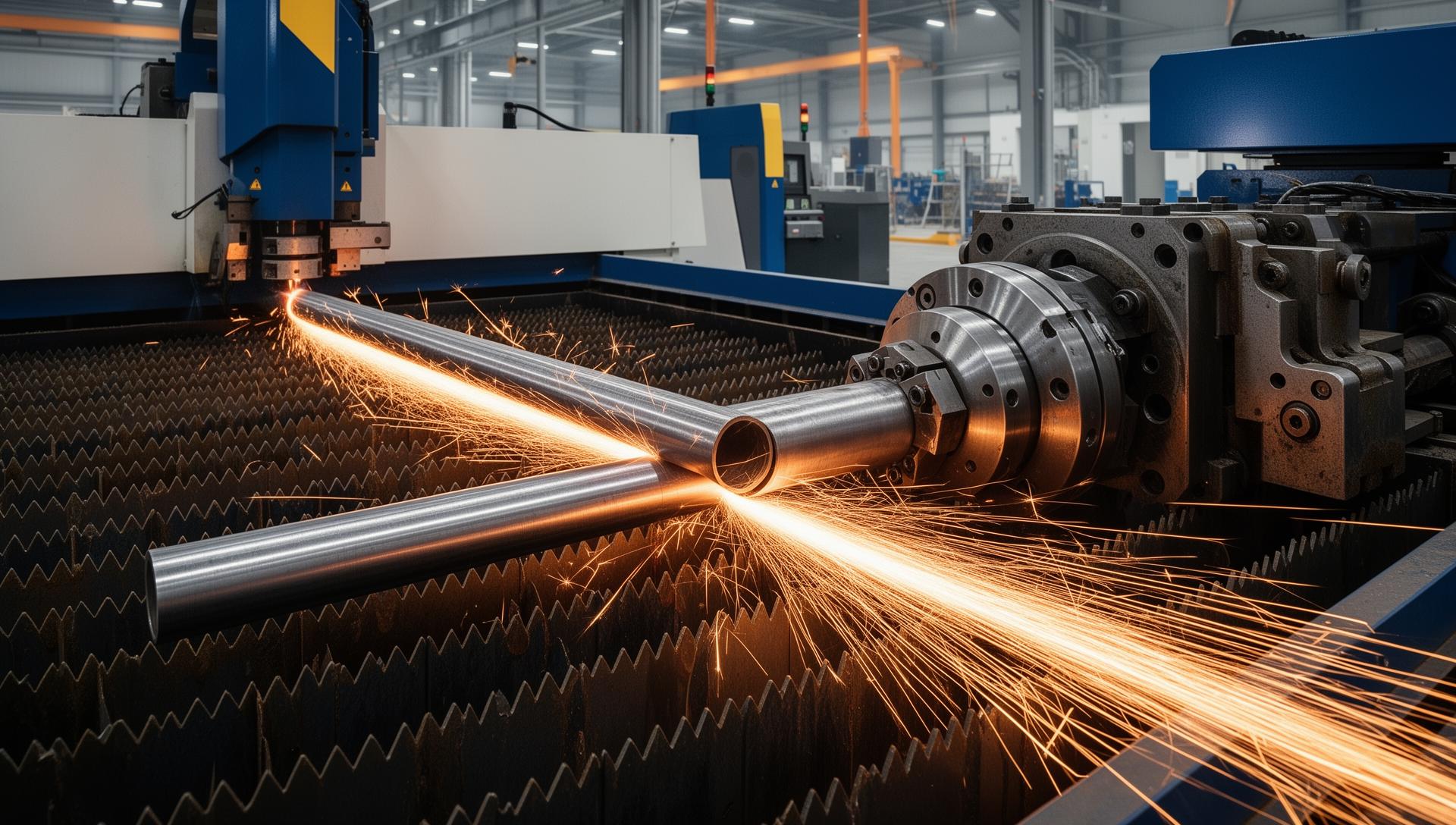

The system accurately rotates the pipe synchronously with the movement of the cutting head, which allows to carry out precise openings, oblique cuts and structural interlock.

The system allows the implementation of:

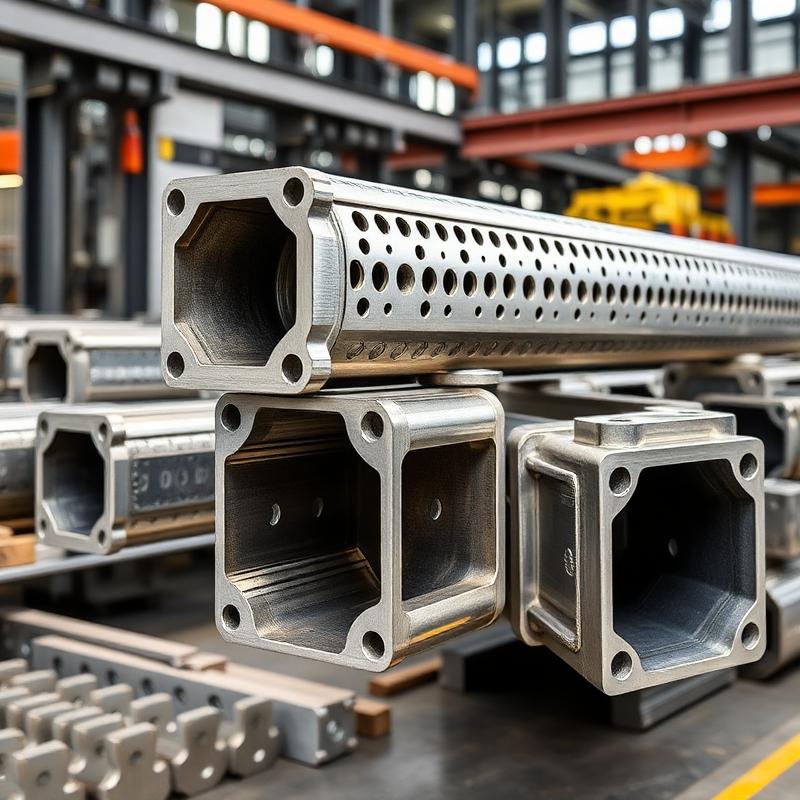

Precise openings

Oblique cut

Structural interlock

Complex geometric shapes

Maintaining the straightness of the pipe

Materials

Operable materials

Carbon steel pipes

Stainless steel pipes

Aluminum pipes

H-Beam sectors

Sectors U and L

Square and rectangular sectors

Uses and applications

Areas of use

Metal structure factories

Construction projects

Manufacturing of bridges and structures

Metal furniture factories

Heavy engineering industries

Industrial structure production lines

Specifications

Technical specifications

Capacity	3KW – 12KW
Maximum diameter	Up to 350 mm
Length of pipes	6 meters or 12 meters

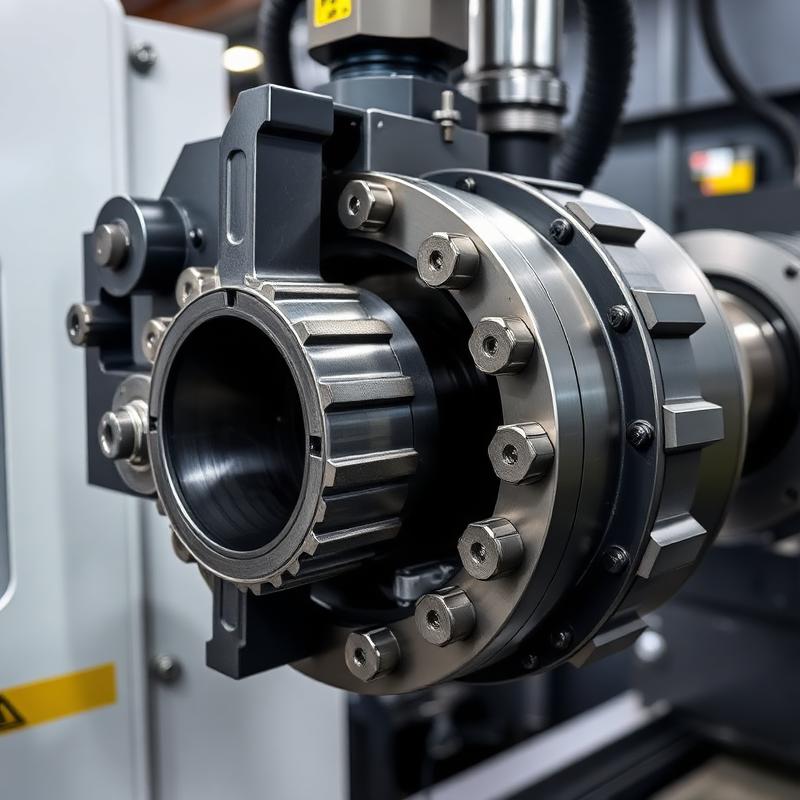

Installation system	Heavy Duty Automatic Chuck
Number of axes	Multi-axis
Repeat accuracy	±0.03 mm
Laser source	Raycus / MAX
Movement system	Servo Motor صناعي
Cooling system	Industrial Chiller
Voltage	380V-triple won
