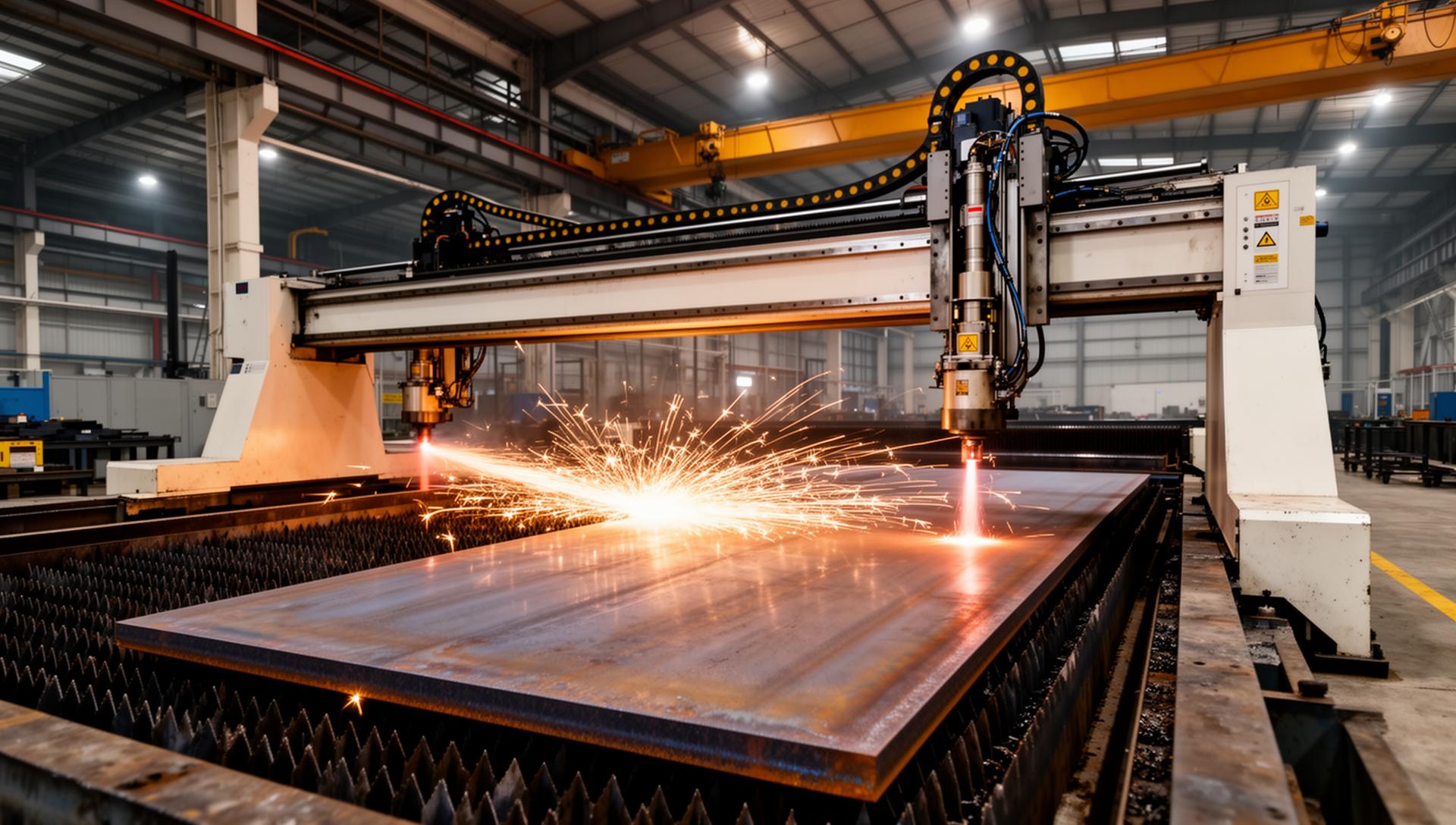

Gantry Fiber Laser – High Power
Fiber laser gantry CNC machine
For cutting thick boardsAnd large sizes
High laser capacity up to 30KW with a very large operating area and an ultra — rigid gantry structure-the ideal solution for heavy industry.
Why is this model
Serves factories working on huge projects
Suitable for panels of large thicknesses

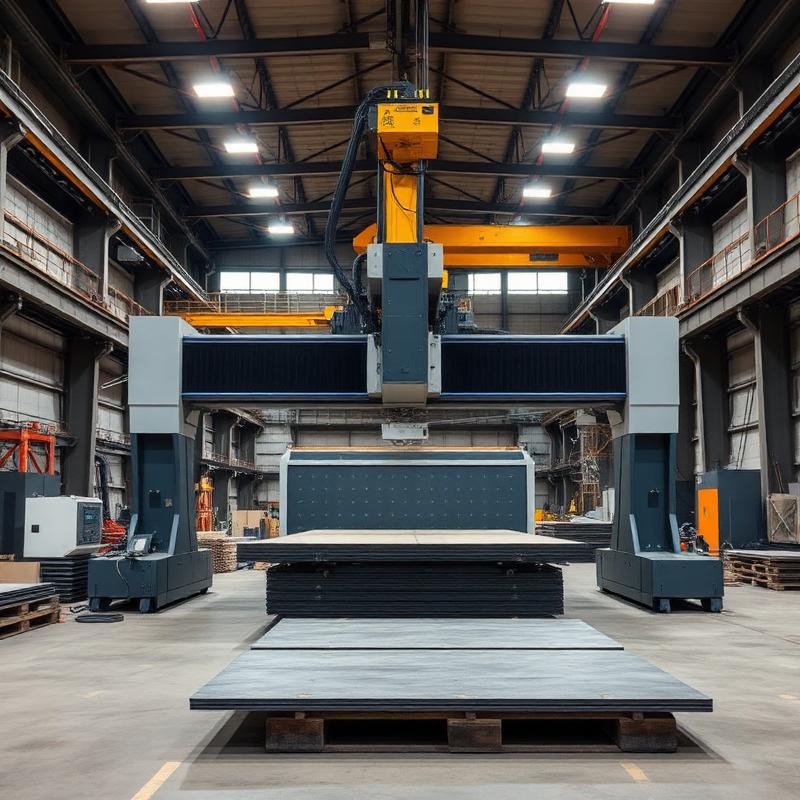

The ability to cut huge areas
Stable performance in heavy industrial operation
High production speed
Micron resolution even in large dimensions
Suitable for heavy industry and infrastructure
Mechanism of action
Technical mechanism of action

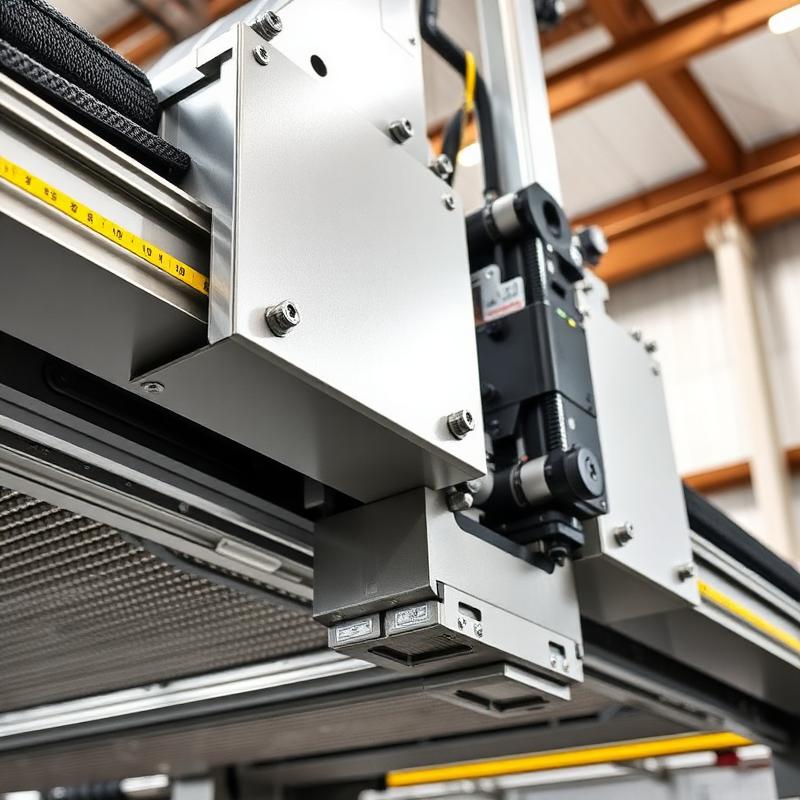

The dual-drive gantry structure ensures a balanced distribution of loads during movement with high-torque Servo motors.
The system maintains:
Cutting accuracy
Stability of movement
Long operating life
Reduce vibrations

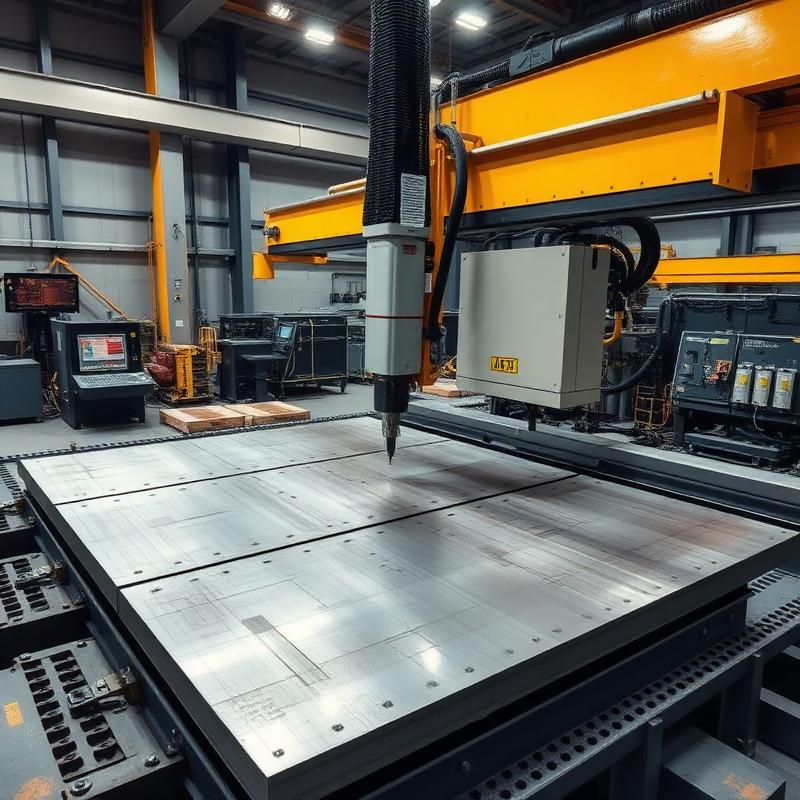

Cutting thick slabs quickly and efficiently
Materials
Operable materials
Thick carbon steel plates
Stainless steel
Aluminum plates
Industrial metal sheets
Heavy plates for engineering projects
Uses and applications
Areas of use
Heavy metal structure factories
Marine industries
Bridges and infrastructure projects
Heavy equipment factories
Petroleum and energy industries
Manufacturing of large production lines
Specifications
Technical specifications
| Capacity | 6KW – 30KW |
| مساحة التشغيل | 600×250 / 600×300 / 1200×300 سم |
| Movement system | Dual Drive Gantry System |
| Repeat accuracy | ±0.02 مم |
| سرعة الحركة | حسب القدرة والمساحة |
| Laser source | Raycus / MAX / IPG (اختياري) |
| أنظمة القيادة | Servo Motors صناعية |
| Cooling system | Chiller صناعي عالي القدرة |
| Voltage | 380V-triple won |
Operational advantages
Ability to efficiently cut large thicknesses
High stability in large areas
Suitable for continuous operation
Reduced operating cost compared to conventional plasma
Excellent cutting edge quality
Why is prima
Why buy from Prima laser
Up to 5 years warranty
Installation inside the factory
Full practical training
Fast technical support
Spare parts are available
Request a quote now
Select the required length and thickness and we will help you choose the right capacity.
