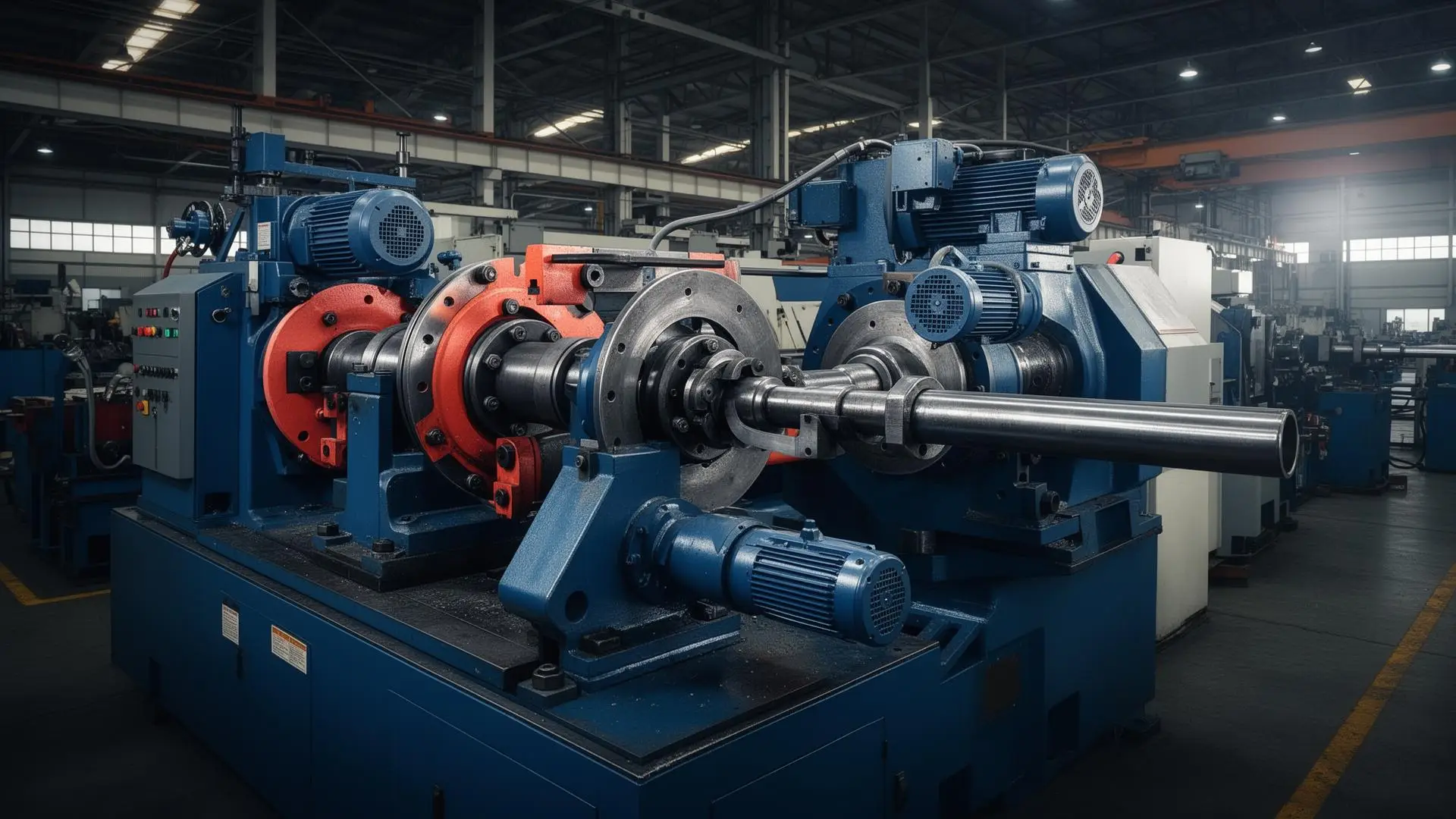

CNC Pipe Bending Machine
CNC pipe bending machine
Multi-axisHigh precision
A sophisticated digital control system for performing complex bending operations at multiple angles — diameter up to 160 mm with a repeat accuracy of ±0.05 mm.
Why is this model
Geometric precision and high repeatability in every piece
High accuracy in bending angles
The possibility of performing complex forms
Reduce losses and deformation
Suitable for mass production
Full digital control
Speed of preparation and operation
Mechanism of action
Technical mechanism of action

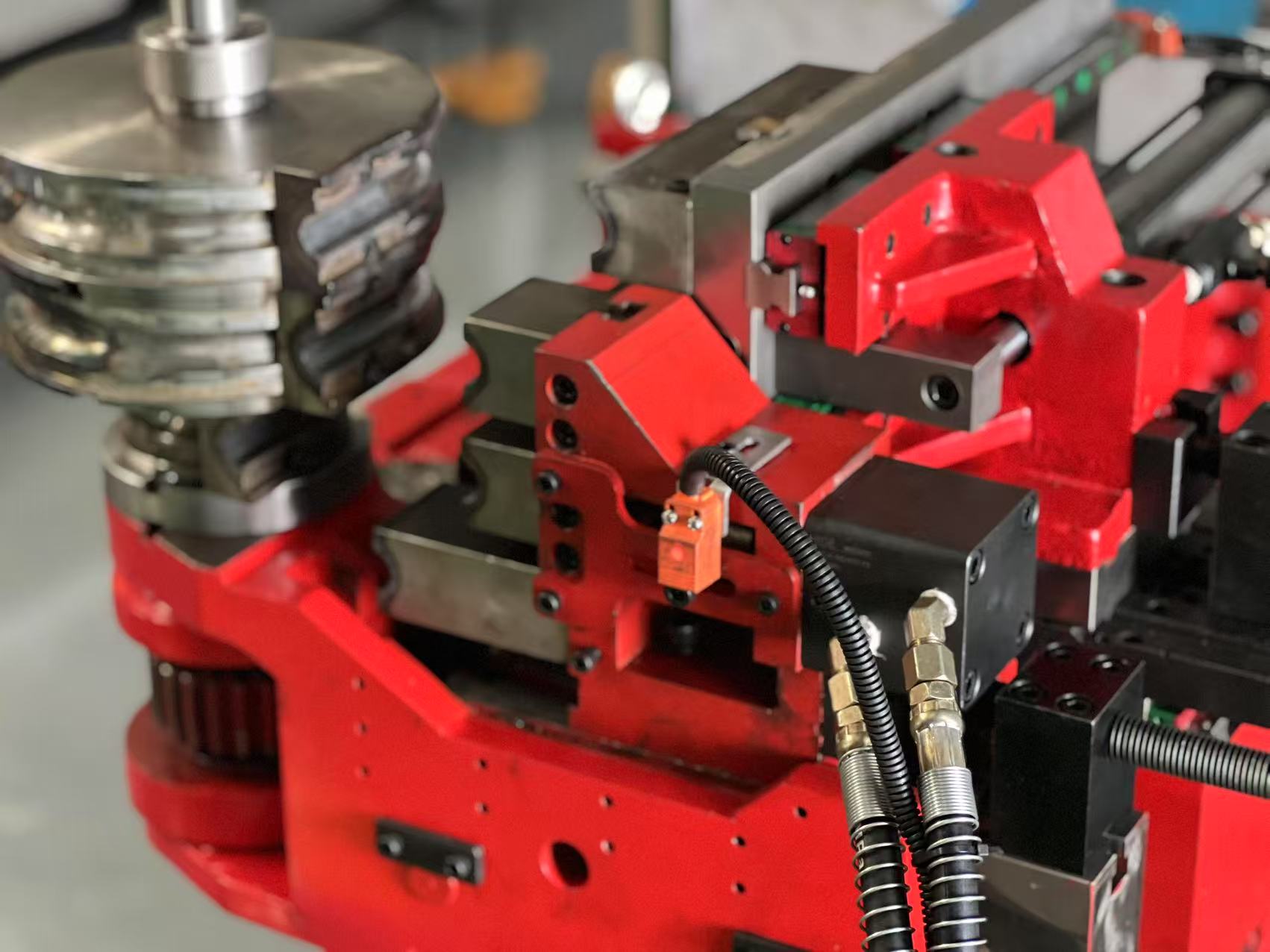

It adopts CNC multi-axis system with high precision industrial Servo motors and hermetic Clamp system for pipe fixing.
The system performs:
Automatically calculate the bending radius
Adjust the bending angle and speed
Programming sequential bending steps
Ensure accurate repeatability in serial production
Several successive bending steps can be programmed inside the same tube while maintaining its straightness and no distortions.
Materials

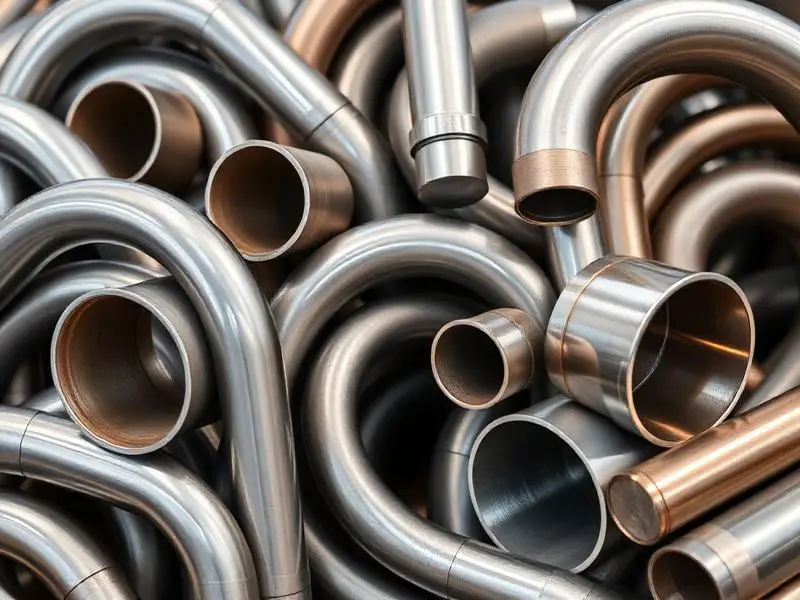

Operable materials
Carbon steel pipes
Stainless steel pipes
Aluminum
Brass
Round and square pipes
Uses and applications
Areas of use
Manufacture of metal furniture
Engineering industries
Automotive production lines
Air conditioning and cooling systems
Petroleum industries
Factory equipment
Specifications
Technical specifications
| Maximum diameter | Up to 160 mm |
| Number of axes | Multi Axis CNC |
| Control system | CNC Controller |
| نظام القيادة | Servo Motors |
| Repeat accuracy | ±0.05 مم |
| أقصى زاوية ثني | حتى 180° |
| Voltage | 380V-triple won |
Operational advantages
High repeat accuracy
Reduce operating time
Easy process programming
Stability during bending
Reduce the need for manual labor
Why is prima
Why buy from Prima laser
Up to 5 years warranty
Installation inside the factory
Full practical training
Fast technical support
Spare parts are available
Request a quote now
Select the required length and thickness and we will help you choose the right capacity.
